4SD

Applications
For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation

Operating Conditions
Maximum sand content: 0.25%
Maximum immersion: 80m
Minimum well diameter: 4"

Motor and Pump
Rewindable motor
Singe phase: 220V-240V/50HZ
Three phase: 380V-415V/50HZ
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
Curve tolerance according to ISO 9906

Options on Request
Special mechanical seal
Other voltage or frequency 60HZ
Single phase motor with built-in capacitor

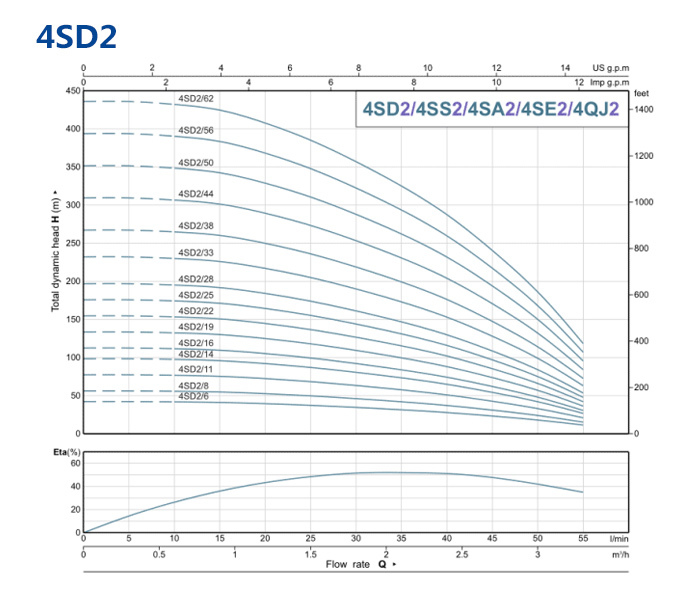

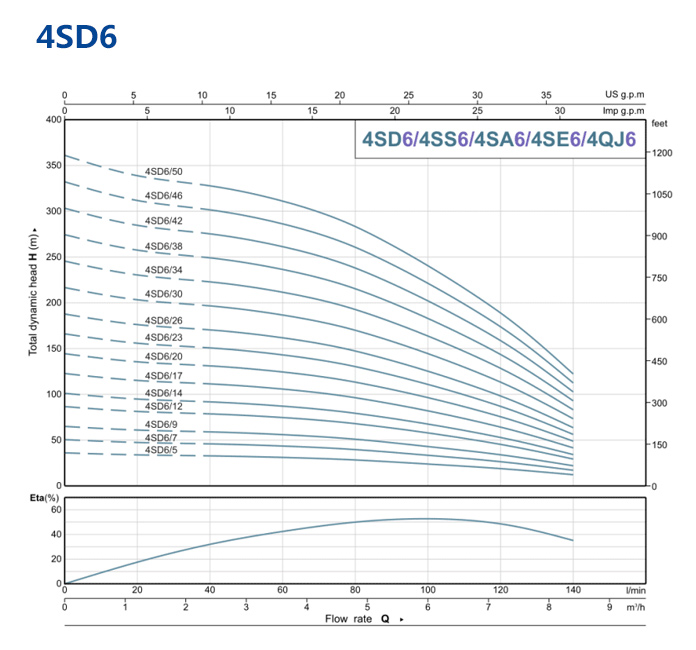

PERFORMANCE DATA 50Hz
MODEL		P2				DELIVERY n≈2850 1/min
1～	3~	kW	HP	Q	m3/h	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7	3	3.3
220V~240V	380V~415V			Q	l/min	0	5	10	15	20	25	30	35	40	45	50	55
4SDM2/6	4SD2/6	0.25	0.33	H(m)		42	42	41	41	40	37	35	33	29	24	18	11
4SDM2/8	4SD2/8	0.37	0.5			56	56	55	54	54	50	47	44	38	32	24	15
4SDM2/11	4SD2/11	0.55	0.75			77	76	76	75	74	68	65	61	53	44	33	21
4SDM2/14	4SD2/14	0.75	1			98	97	97	95	94	87	83	77	67	56	42	27
4SDM2/16	4SD2/16	0.92	1.25			112	111	110	109	107	99	94	88	77	64	48	30
4SDM2/19	4SD2/19	1.1	1.5			133	132	131	129	127	118	112	105	91	76	57	36
4SDM2/22	4SD2/22	1.3	1.75			154	153	152	150	147	136	130	121	106	88	66	42
4SDM2/25	4SD2/25	1.5	2			175	174	173	170	168	155	148	138	120	100	75	48
4SDM2/28	4SD2/28	1.8	2.5			196	195	193	190	188	174	165	154	134	112	84	53
4SDM2/33	4SD2/33	2.2	3			231	229	228	224	221	205	195	181.5	158	132	99	63
4SDM2/38	4SD2/38	2.2	3			266	264	262	258	255	236	224	209	182	152	114	72
	4SD2/44	3	4			308	306	304	299	295	273	260	242	211	176	132	84
	4SD2/50	3	4			350	348	345	340	335	310	295	275	240	200	150	95
	4SD2/56	4	5.5			392	389	386	381	375	347	330	308	269	224	168	106
	4SD2/62	4	5.5			434	431	428	422	415	384	366	341	298	248	186	118

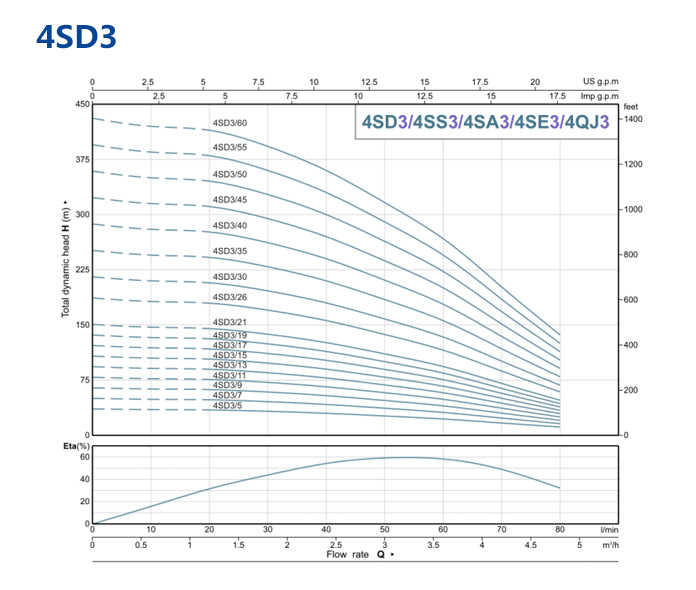

PERFORMANCE DATA 50Hz
MODEL		P2				DELIVERY n≈2850 1/min
1～	3~	kW	HP	Q	m3/h	0	0.6	1.2	1.8	2.4	3	3.6	4.2	4.8
220V~240V	380V~415V			Q	l/min	0	10	20	30	40	50	60	70	80
4SDM3/5	4SD3/5	0.25	0.33	H(m)		35	35	35	33	30	28	22	17	11
4SDM3/7	4SD3/7	0.37	0.5			49	49	48	46	42	39	31	24	15
4SDM3/9	4SD3/9	0.55	0.75			63	63	62	59	54	50	40	31	20
4SDM3/11	4SD3/11	0.75	1			77	77	76	72	66	61	48	37	24
4SDM3/13	4SD3/13	0.92	1.25			91	91	90	85	78	72	57	44	29
4SDM3/15	4SD3/15	1.1	1.5			105	105	104	98	90	83	66	51	33
4SDM3/17	4SD3/17	1.3	1.75			119	119	117	111	102	94	75	58	37
4SDM3/19	4SD3/19	1.5	2			133	133	131	124	114	105	84	65	42
.	4SD3/21	1.8	2.5			147	147	145	137	126	110	92	71.4	46
4SDM3/26	4SD3/26	2.2	3			182	182	179	169	156	140	114	88.4	57
4SDM3/30	4SD3/30	2.2	3			210	210	207	195	180	160	132	102	66
	4SD3/35	3	4			245	245	242	228	210	190	154	119	77
	4SD3/40	3	4			280	280	276	260	240	220	176	136	88
	4SD3/45	4	5.5			315	315	311	293	270	240	198	153	99
	4SD3/50	4	5.5			350	350	345	325	300	270	220	170	110
	4SD3/55	5.5	7.5			385	385	379.5	357.5	330	300	242	187	121
	4SD3/60	5.5	7.5			420	420	414	390	360	320	264	204	132

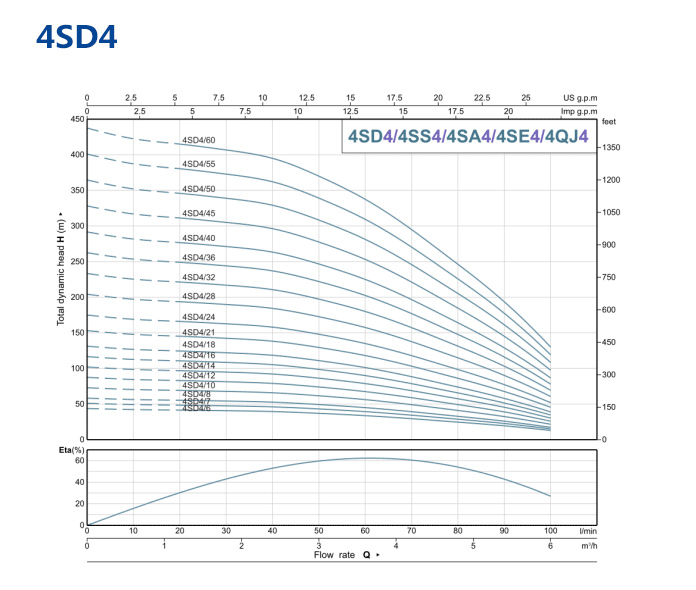

PERFORMANCE DATA 50Hz
MODEL		P2				DELIVERY n≈2850 1/min
1～	3~	kW	HP	Q	m3/h	0	0.6	1.2	1.8	2.4	3	3.6	4.2	4.8	5.4	6
220V~240V	380V~415V			Q	l/min	0	10	20	30	40	50	60	70	80	90	100
4SDM4/6	4SD4/6	0.37	0.5	H(m)		45	42	41	40	39	36	33	30	24	19	14
4SDM4/7	4SD4/7	0.55	0.75			53	49	48	46	46	42	39	35	28	22	17
4SDM4/8	4SD4/8	0.75	1			60	56	54	53	52	48	44	40	32	26	19
4SDM4/10	4SD4/10	0.92	1.25			75	70	68	66	65	60	55	50	40	32	24
4SDM4/12	4SD4/12	1.1	1.5			90	84	82	79	78	72	66	60	48	38	29
4SDM4/14	4SD4/14	1.3	1.75			105	98	95	92	91	84	77	70	56	45	34
4SDM4/16	4SD4/16	1.5	2			120	112	109	106	104	96	88	80	64	51	38
4SDM4/18	4SD4/18	1.8	2.5			135	126	122	119	117	108	99	90	72	58	43
4SDM4/21	4SD4/21	2.2	3			157.5	147	143	139	137	126	116	105	84	67	50
4SDM4/24	4SD4/24	2.2	3			180	168	163	158	156	144	132	120	96	77	58
	4SD4/28	3	4			210	196	190	185	182	168	154	140	112	90	67
	4SD4/32	3	4			240	224	218	211	208	192	176	160	128	102	77
	4SD4/36	4	5.5			270	252	245	238	234	216	198	180	144	115	86
	4SD4/40	4	5.5			300	280	272	264	260	240	220	200	160	128	96
	4SD4/45	5.5	7.5			337.5	315	306	297	293	270	248	225	180	144	108
	4SD4/50	5.5	7.5			375	350	340	330	325	300	275	250	200	160	120
	4SD4/55	7.5	10			412.5	385	374	363	357.5	330	302.5	275	220	176	132
	4SD4/60	7.5	10			450	420	408	396	390	360	330	300	240	192	144

PERFORMANCE DATA 50Hz
MODEL		P2				DELIVERY n≈2850 1/min
1～	3~	kW	HP	Q	m3/h	0	1.2	2.4	3.6	4.8	6	7.2	8.5
220V~240V	380V~415V			Q	l/min	0	20	40	60	80	100	120	140
4SDM6/5	4SD6/5	0.37	0.5	H(m)		35	34	33	31	28	24	20	13
4SDM6/6	4SD6/6	0.55	0.75			42	40	39	37	34	28	24	15
4SDM6/7	4SD6/7	0.75	1			49	47	46	43	39	33	28	18
4SDM6/8	4SD6/8	0.92	1.25			56	54	52	49	45	38	32	20
4SDM6/9	4SD6/9	1.1	1.5			63	60	59	55	50	42	36	23
4SDM6/11	4SD6/11	1.3	1.75			77	74	72	67	62	52	44	28
4SDM6/12	4SD6/12	1.5	2			84	80	78	73	67	56	48	30
4SDM6/14	4SD6/14	1.8	2.5			98	94	91	85	78	66	56	35
4SDM6/17	4SD6/17	2.2	3			119	114	111	104	95	80	68	43
4SDM6/20	4SD6/20	2.2	3			140	134	130	122	112	94	80	50
	4SD6/23	3	4			161	154	150	140	129	108	92	58
	4SD6/26	3	4			182	174	169	159	146	122	104	65
	4SD6/30	4	5.5			210	201	195	183	168	141	120	75
	4SD6/34	4	5.5			238	228	221	207	190	160	136	85
	4SD6/38	5.5	7.5			266	255	247	232	213	179	152	95
	4SD6/42	5.5	7.5			294	281	273	256	235	197	168	105
	4SD6/46	7.5	10			322	308	299	281	258	216	184	115
	4SD6/50	7.5	10			350	335	325	305	280	235	200	125

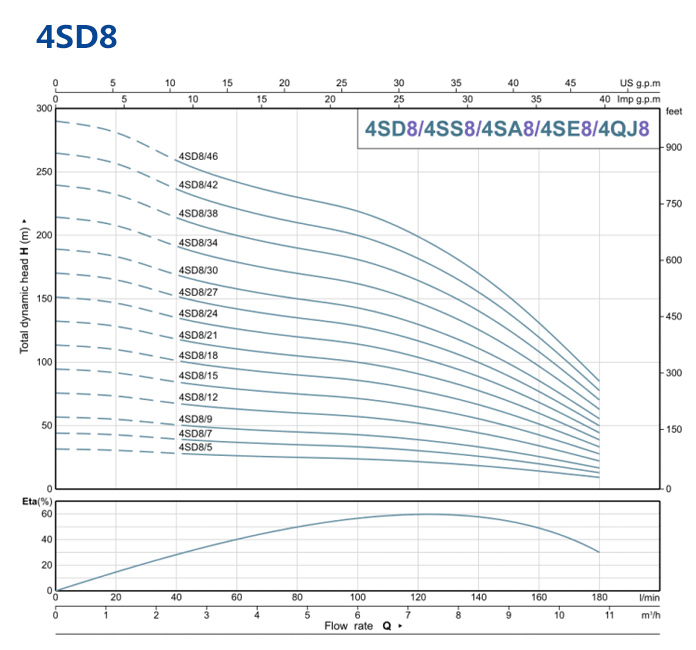

PERFORMANCE DATA 50Hz
MODEL		P2				DELIVERY n≈2850 1/min
1～	3~	kW	HP	Q	m3/h	0	1.2	2.4	3.6	4.8	6	7.2	8.5	9.6	11
220V~240V	380V~415V			Q	l/min	0	20	40	60	80	100	120	140	160	180
4SDM8/5	4SD8/5	0.55	0.75	H(m)		31	31	28	26	25	24	22	18	14	9
4SDM8/6	4SD8/6	0.75	1			37	37	34	31	30	29	26	21	17	10.8
4SDM8/7	4SD8/7	0.92	1.25			43	43	39	36	35	34	31	25	20	12.6
4SDM8/8	4SD8/8	1.1	1.5			50	50	45	42	40	38	35	28	22	14.4
4SDM8/9	4SD8/9	1.3	1.75			56	56	50	47	45	43	40	32	25	16.2
4SDM8/10	4SD8/10	1.5	2			62	62	56	52	50	48	44	35	28	18
4SDM8/12	4SD8/12	1.8	2.5			74	74	67	62	60	58	53	42	34	21.6
4SDM8/15	4SD8/15	2.2	3			93	93	84	78	75	72	66	53	42	27
4SDM8/18	4SD8/18	2.2	3			111.6	112	101	94	90	86	79	63	50	32.4
	4SD8/21	3	4			130.2	130	118	109	105	101	92	74	59	37.8
	4SD8/24	3	4			148.8	149	134	125	120	115	106	84	67	43.2
	4SD8/27	4	5.5			167.4	167	151	140	135	130	119	95	76	48.6
	4SD8/30	4	5.5			186	186	168	156	150	144	132	105	84	54
	4SD8/34	5.5	7.5			210.8	211	190	177	170	163	150	119	95	61.2
	4SD8/38	5.5	7.5			235.6	236	213	198	190	182	167	133	106	68.4
	4SD8/42	7.5	10			260.4	260	235	218	210	202	185	147	118	75.6
	4SD8/46	7.5	10			285.2	285	258	239	230	221	202	161	129	82.8

PERFORMANCE DATA 50Hz
MODEL		P2				DELIVERY n≈2850 1/min
1～	3~	kW	HP	Q	m3/h	0	1.8	3.6	5.4	7.2	9	10.8	12.6	14.4
220V~240V	380V~415V			Q	l/min	0	30	60	90	120	150	180	210	240
4SDM10/4	4SD10/4	0.75	1	H(m)		24	24	23	21	20	18	15	10	6
4SDM10/5	4SD10/5	0.92	1.25			30	30	29	27	25	23	19	13	8
4SDM10/6	4SD10/6	1.1	1.5			36	36	35	32	30	27	23	16	9
4SDM10/7	4SD10/7	1.3	1.75			42	42	41	37	35	32	27	18	11
4SDM10/8	4SD10/8	1.5	2			48	48	46	42	40	36	30	21	12
4SDM10/10	4SD10/10	1.8	2.5			60	60	58	53	50	45	38	26	15
4SDM10/12	4SD10/12	2.2	3			72	72	70	64	60	54	46	31	18
4SDM10/14	4SD10/14	2.2	3			84	84	81	74	70	63	53	36	21
	4SD10/16	3	4			96	96	93	85	80	72	61	42	24
	4SD10/18	3	4			108	108	104	95	90	81	68	47	27
	4SD10/20	4	5.5			120	120	116	106	100	90	76	52	30
	4SD10/22	4	5.5			132	132	128	117	110	99	84	57	33
	4SD10/25	5.5	7.5			150	150	145	133	125	113	95	65	38
	4SD10/28	5.5	7.5			168	168	162	148	140	126	106	73	42
	4SD10/31	7.5	10			186	186	180	164	155	140	118	81	47
	4SD10/34	7.5	10			204	204	197	180	170	153	129	88	51

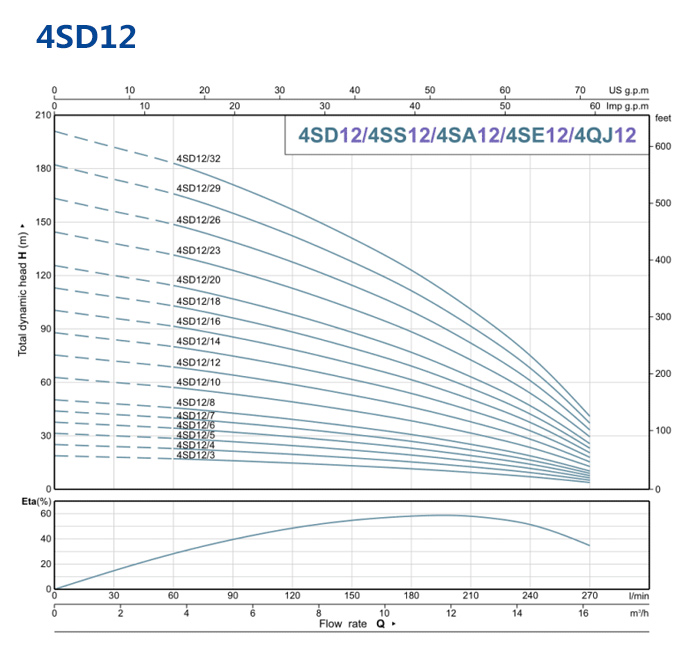

PERFORMANCE DATA 50Hz
MODEL		P2				DELIVERY n≈2850 1/min
1～	3~	kW	HP	Q	m3/h	0	1.8	3.6	5.4	7.2	9	10.8	12.6	14.4	16
220V~240V	380V~415V			Q	l/min	0	30	60	90	120	150	180	210	240	270
4SDM12/3	4SD12/3	0.75	1	H(m)		19	18	17	16	15	13	12	9	7	4.5
4SDM12/4	4SD12/4	0.92	1.25			25	24	22	21	20	17	16	12	9	6
4SDM12/5	4SD12/5	1.1	1.5			32	30	28	27	25	22	20	15	12	7.5
4SDM12/6	4SD12/6	1.3	1.75			38	36	33	32	30	26	24	18	14	9
4SDM12/7	4SD12/7	1.5	2			44	42	39	37	35	30	28	21	16	10.5
4SDM12/8	4SD12/8	1.8	2.5			50	48	44	42	40	34	32	24	18	12
4SDM12/10	4SD12/10	2.2	3			63	60	55	53	50	43	40	30	23	15
4SDM12/12	4SD12/12	2.2	3			76	72	66	64	60	52	48	36	28	18
	4SD12/14	3	4			88.2	84	77	74	70	60	56	42	32	21
	4SD12/16	3	4			100.8	96	88	85	80	69	64	48	37	24
	4SD12/18	4	5.5			113.4	108	99	95	90	77	72	54	41	27
	4SD12/20	4	5.5			126	120	110	106	100	86	80	60	46	30
	4SD12/23	5.5	7.5			144.9	138	127	122	115	99	92	69	53	34.5
	4SD12/26	5.5	7.5			163.8	156	143	138	130	112	104	78	60	39
	4SD12/29	7.5	10			182.7	174	160	154	145	125	116	87	67	43.5
	4SD12/32	7.5	10			201.6	192	176	170	160	138	128	96	74	48

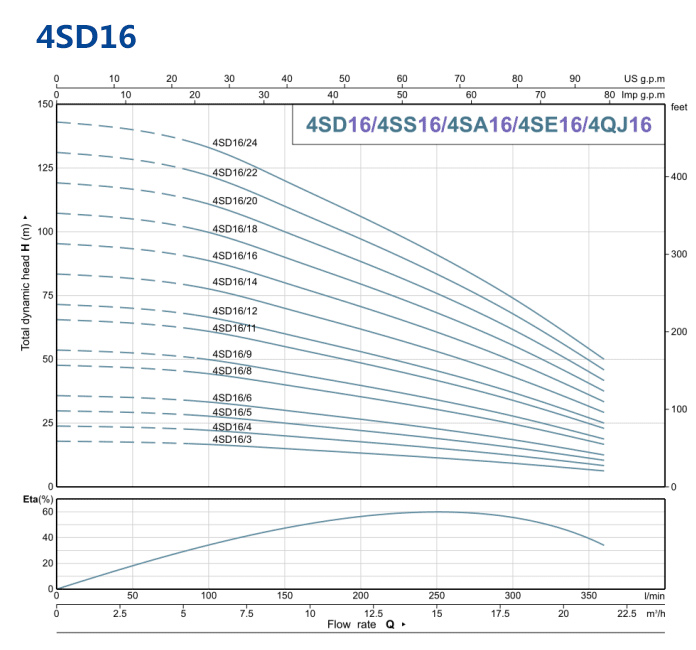

PERFORMANCE DATA 50Hz
MODEL		P2				DELIVERY n≈2850 1/min
1～	3~	kW	HP	Q	m3/h	0	3	6	9	12	15	18	21
220V~240V	380V~415V			Q	l/min	0	50	100	150	200	250	300	350
4SDM16/3	4SD16/3	1.1	1.5	H(m)		18	17	17	15	13	11	9	6
4SDM16/4	4SD16/4	1.3	1.75			24	23	22	20	17	12	12	8
4SDM16/5	4SD16/5	1.5	2			30	29	28	25	22	13	15	10
4SDM16/6	4SD16/6	1.8	2.5			36	35	33	30	26	14	18	12
4SDM16/8	4SD16/8	2.2	3			48	46	44	40	35	15	24	16
4SDM16/9	4SD16/9	2.2	3			54	52	50	45	39	16	27	18
	4SD16/11	3	4			66	64	61	55	48	17	33	22
	4SD16/12	3	4			72	70	66	60	52	18	36	24
	4SD16/14	4	5.5			84	81	77	70	61	19	42	28
	4SD16/16	4	5.5			96	93	88	80	70	20	48	32
	4SD16/18	5.5	7.5			108	104	99	90	78	21	54	36
	4SD16/20	5.5	7.5			120	116	110	100	87	22	60	40
	4SD16/22	7.5	10			132	128	121	110	96	23	66	44
	4SD16/24	7.5	10			144	139	132	120	104	24	72	48
