Taizhou Qingquan Pump Co., Ltd.

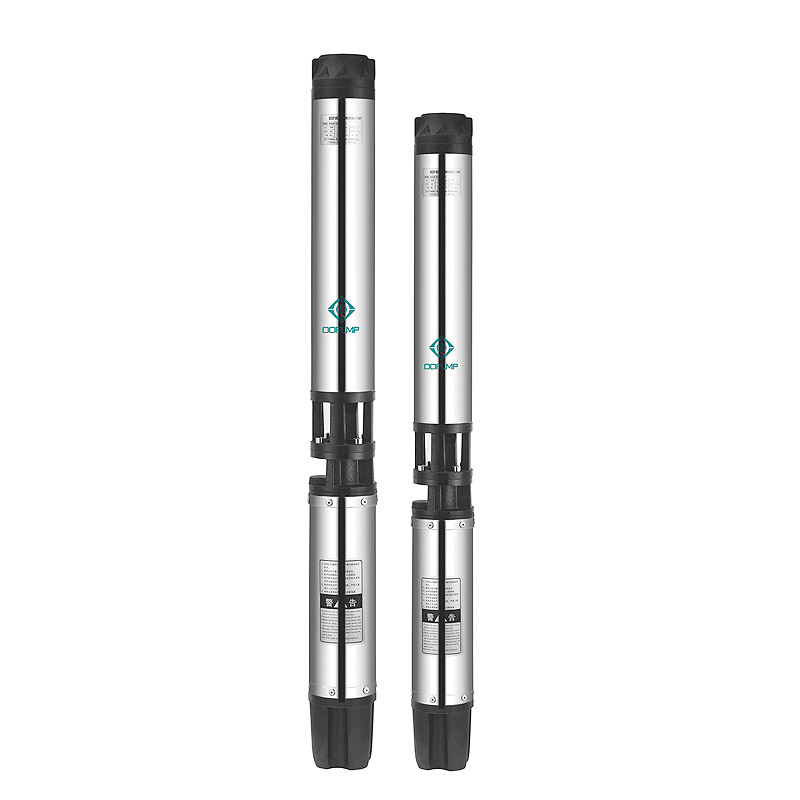

6SR

Applications
For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation

Operating Conditions
Maximum uid temperature up to +50℃
Maximum sand content: 0.25%
Maximum immersion: 100m
Minimum well diameter: 6"

Motor and Pump
Rewindable motor
Single-phase:220V- 240V/50Hz
Three-phase: 380V- 415V/50Hz
Equip with start control box or digital auto-control box
NEMA dimension standards

Options on Request
Special mechanical seal
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor
Warranty: 1 year
(according to our general sales conditions)

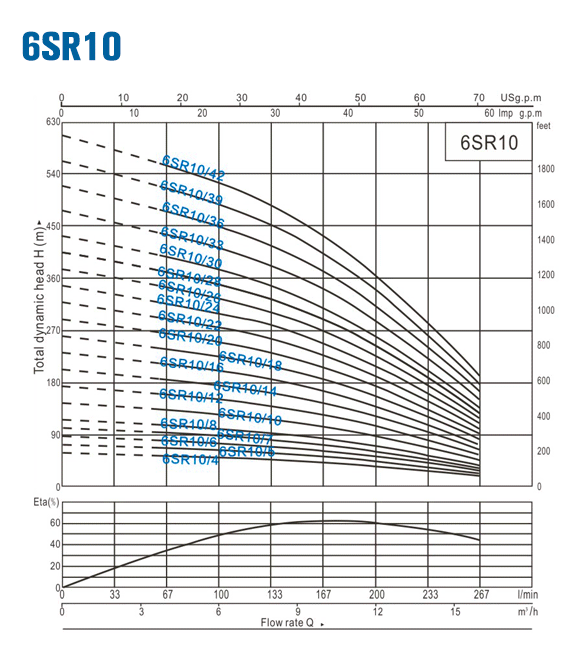

PERFORMANCE DATA 50Hz
MODEL		P2				DELIVERY n≈2850 1/min
1~ 220-240V	3~ 380-415V	kW	HP	Q	m3/h	0	2	4	6	8	10	12	14	16
1~ 220-240V	3~ 380-415V	kW	HP	Q	l/min	0	33	67	100	133	167	200	233	267
6SRM10-4	6SR10-4	2.2	3	H(m)		58	55	53	50	46	41	35	27	18
6SRM10-5	6SR10-5	3	4			73	69	67	63	58	52	44	34	23
6SRM10-6	6SR10-6	4	5.5			87	83	80	76	70	62	53	41	28
6SRM10-7	6SR10-7	4	5.5			102	97	93	88	81	72	62	48	32
6SRM10-8	6SR10-8	5.5	7.5			116	110	106	101	93	82	70	54	37
6SRM10-10	6SR10-10	5.5	7.5			145	138	133	126	116	103	88	68	46
	6SR10-12	7.5	10			174	166	160	151	139	124	106	82	55
	6SR10-14	7.5	10			203	193	186	176	162	144	123	95	64
	6SR10-16	9.2	12.5			232	221	213	202	186	165	141	109	74
	6SR10-18	9.2	12.5			261	248	239	227	209	185	158	122	83
	6SR10-20	11	15			290	276	266	252	232	206	176	136	92
	6SR10-22	11	15			319	304	293	277	255	227	194	150	101
	6SR10-24	13	17.5			348	331	319	302	278	247	211	163	110
	6SR10-26	13	17.5			377	359	346	328	302	268	229	177	120
	6SR10-28	15	20			406	386	372	353	325	288	246	190	129
	6SR10-30	15	20			435	414	399	378	348	309	264	204	138
	6SR10-33	18.5	25			479	455	439	416	383	340	290	224	152
	6SR10-36	18.5	25			522	497	479	454	418	371	316	243	166
	6SR10-39	22	30			566	538	519	491	452	402	341	263	179
	6SR10-42	22	30			609	580	559	529	487	433	368	283	193

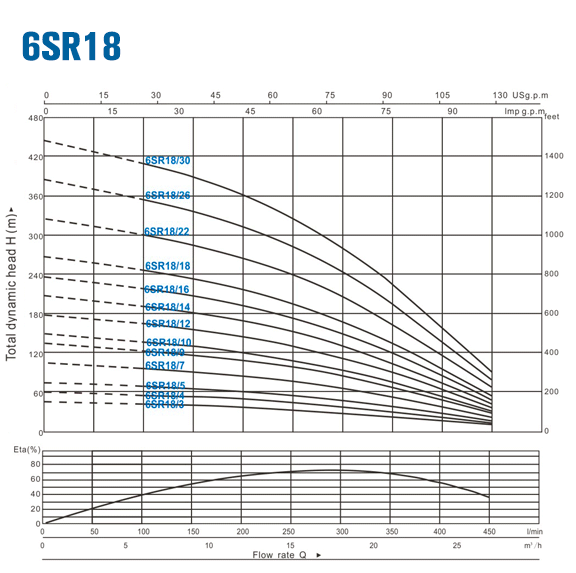

PERFORMANCE DATA 50Hz
MODEL		P2				DELIVERY n≈2850 1/min
1~ 220-240V	3~ 380-415V	kW	HP	Q	m3/h	0	3	6	9	12	15	18	21	24	27
1~ 220-240V	3~ 380-415V	kW	HP	Q	l/min	0	50	100	150	200	250	300	350	400	450
6SRM18-3	6SR18-3	2.2	3	H(m)		45	43	40	39	36	32	28	22	16	9
6SRM18-4	6SR18-4	3	4			60	58	54	52	48	43	38	30	22	12
6SRM18-5	6SR18-5	4	5.5			76	72	67	66	61	54	47	37	27	16
6SRM18-7	6SR18-7	5.5	7.5			106	101	94	92	85	75	66	52	38	22
	6SR18-9	7.5	10			136	130	121	118	109	96	85	67	49	28
	6SR18-10	7.5	10			151	144	134	131	121	107	94	74	54	31
	6SR18-12	9.2	12.5			181	173	161	157	145	128	113	89	65	37
	6SR18-14	11	15			211	202	188	183	169	150	132	104	76	43
	6SR18-16	13	17.5			242	230	214	210	194	171	150	118	87	50
	6SR18-18	15	20			272	259	241	236	218	193	169	133	97	56
	6SR18-22	18.5	25			332	317	295	288	266	235	207	163	118	68
	6SR18-26	22	30			393	372	348	341	314	278	244	192	139	81
	6SR18-30	26	35			453	430	402	393	363	321	282	222	160	93

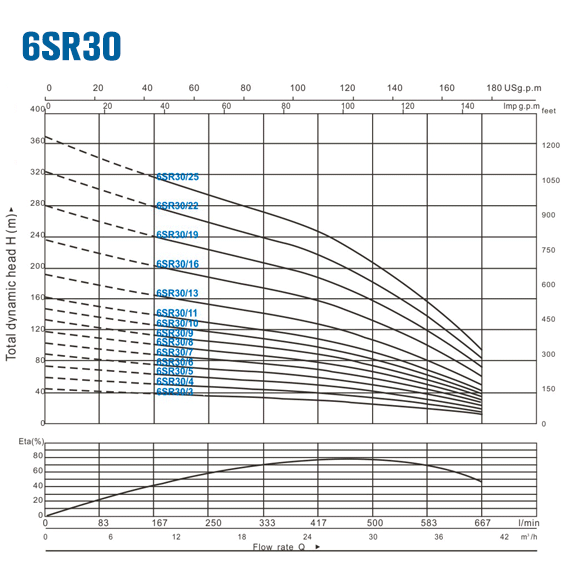

PERFORMANCE DATA 50Hz
MODEL		P2				DELIVERY n≈2850 1/min
1~ 220-240V	3~ 380-415V	kW	HP	Q	m3/h	0	5	10	15	20	25	30	35	40
1~ 220-240V	3~ 380-415V	kW	HP	Q	l/min	0	83	167	250	333	417	500	583	667
6SRM30-3	6SR30-3	3	4	H(m)		44	41	38	36	33	30	25	20	10
6SRM30-4	6SR30-4	4	5.5			59	56	52	48	45	41	34	26	15
6SRM30-5	6SR30-5	5.5	7.5			74	70	65	61	56	51	42	32	19
	6SR30-6	7.5	10			88	83	77	73	67	61	51	38	22
	6SR30-7	7.5	10			103	96	90	85	78	71	59	45	26
	6SR30-8	9.2	12.5			118	110	103	97	89	81	67	51	30
	6SR30-9	11	15			132	123	115	109	100	91	76	58	33
	6SR30-10	11	15			147	137	128	121	111	101	84	64	37
	6SR30-11	13	17.5			162	151	140	133	122	111	92	70	41
	6SR30-13	15	20			191	178	165	157	144	131	109	83	48
	6SR30-16	18.5	25			235	219	203	194	178	160	134	102	59
	6SR30-19	22	30			279	260	241	229	211	190	160	122	70
	6SR30-22	26	35			323	301	279	265	242	220	185	141	81
	6SR30-25	30	40			368	343	318	301	276	251	210	160	93

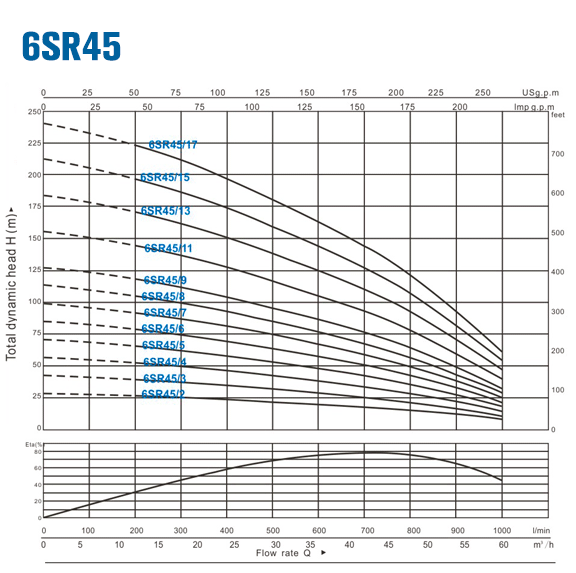

PERFORMANCE DATA 50Hz
MODEL		P2				DELIVERY n≈2850 1/min
1~ 220-240V	3~ 380-415V	kW	HP	Q	m3/h	0	6	12	18	24	30	36	42	48	54	60
1~ 220-240V	3~ 380-415V	kW	HP	Q	l/min	0	100	200	300	400	500	600	700	800	900	1000
6SRM45-2	6SR45-2	3	4	H(m)		28	27	26	24	23	21	19	18	15	12	8
6SRM45-3	6SR45-3	4	5.5			42	41	40	37	35	32	30	27	22	17	12
6SRM45-4	6SR45-4	5.5	7.5			56	54	53	49	46	42	40	35	29	22	14
	6SR45-5	7.5	10			71	68	67	61	58	53	50	44	36	28	19
	6SR45-6	9.2	12.5			85	82	80	73	70	64	60	53	43	34	23
	6SR45-7	11	15			99	95	91	85	81	74	69	61	50	39	26
	6SR45-8	13	17.5			113	109	104	98	91	85	78	70	58	45	30
	6SR45-9	15	20			127	122	117	110	104	95	88	78	65	50	33
	6SR45-11	18.5	25			155	150	144	134	126	117	106	95	79	62	41
	6SR45-13	22	30			183	177	170	159	150	138	126	113	94	73	48
	6SR45-15	26	35			212	204	197	183	171	159	145	130	108	84	55
	6SR45-17	30	40			240	231	223	207	195	180	164	147	122	95	62

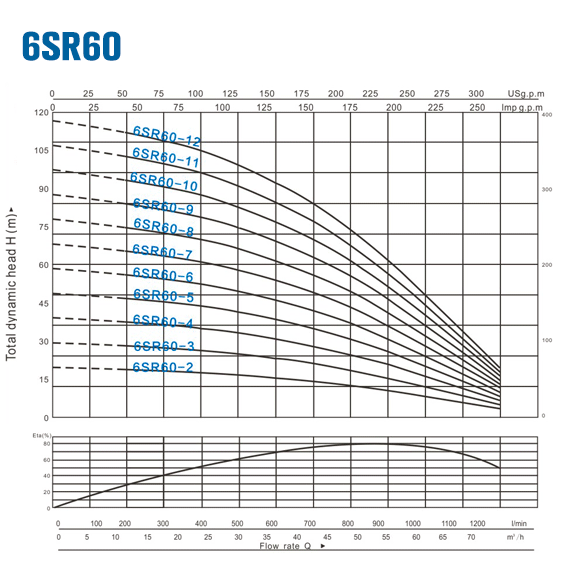

PERFORMANCE DATA 50Hz
MODEL		P2				DELIVERY n≈2850 1/min
1~ 220-240V	3~ 380-415V	kW	HP	Q	m3/h	0	6	12	18	24	30	36	42	48	54	60	66	72
1~ 220-240V	3~ 380-415V	kW	HP	Q	l/min	0	100	200	300	400	500	600	700	800	900	1000	1100	1200
6SRM60-2	6SR60-2	4	5.5	H(m)		25	24	23	23	22	21	20	18	16	12	10	6	4
6SRM60-3	6SR60-3	5.5	7.5			38	36	36	35	34	32	28	28	23	20	16	11	6
	6SR60-4	7.5	10			50	48	47	46	45	42	39	37	30	26	21	14	8
	6SR60-5	11	15			62	61	59	58	56	53	49	46	38	33	26	18	11
	6SR60-6	15	20			74	73	70	70	67	64	59	55	46	40	31	22	13
	6SR60-7	18.5	25			86	85	82	81	78	74	66	62	53	46	36	25	15
	6SR60-8	18.5	25			99	97	94	93	88	85	77	72	61	53	42	29	17
	6SR60-9	22	30			111	109	105	104	100	95	86	81	68	59	47	32	19
	6SR60-10	26	35			123	121	117	114	110	104	96	90	76	66	52	36	21
	6SR60-11	30	40			135	133	129	126	121	115	106	99	84	73	57	40	23
	6SR60-12	30	40			147	145	141	137	132	126	115	107	91	79	62	43	25

6SR
