Taizhou Qingquan Pump Co., Ltd.

4SS

Applications

For water supply from wells or reservois
For domestic use,for civil and industrial applications
For garden use and irrigation

Operating Conditions

Maximum fluid temperature up to+35 ℃
Maximum sand content:0.25%
Maximum immersion:80m
Maximum well diameter:4"

Motor and Pump

Rewindable motor
Singe phaseL220C~240v/50HZ
Three phase:308V~415v/50HZ
Equip with star control box digital auto-control box

Options on Request

Special mechanical seal
Other voitage or frequency 60HZ
Single phase motor with built-in capacitor

PERFORMANCE DATA 50Hz
MODEL		P2				DELIVERY n≈2850 1/min
1～	3~	kW	HP	Q	m3/h	0	0.6	1.2	1.8	2.4	3	3.6	4.2	4.8
220V~240V	380V~415V			Q	l/min	0	10	20	30	40	50	60	70	80
4SSM3/5	4SS3/5	0.25	0.33	H(m)		35	35	35	33	30	28	22	17	11
4SSM3/7	4SS3/7	0.37	0.5			49	49	48	46	42	39	31	24	15
4SSM3/9	4SS3/9	0.55	0.75			63	63	62	59	54	50	40	31	20
4SSM3/11	4SS3/11	0.75	1			77	77	76	72	66	61	48	37	24
4SSM3/13	4SS3/13	0.92	1.25			91	91	90	85	78	72	57	44	29
4SSM3/15	4SS3/15	1.1	1.5			105	105	104	98	90	83	66	51	33
4SSM3/17	4SS3/17	1.3	1.75			119	119	117	111	102	94	75	58	37
4SSM3/19	4SS3/19	1.5	2			133	133	131	124	114	105	84	65	42
4SSM3/21	4SS3/21	1.8	2.5			147	147	145	137	126	110	92	71.4	46
4SSM3/26	4SS3/26	2.2	3			182	182	179	169	156	140	114	88.4	57
4SSM3/30	4SS3/30	2.2	3			210	210	207	195	180	160	132	102	66
	4SS3/35	3	4			245	245	242	228	210	190	154	119	77
	4SS3/40	3	4			280	280	276	260	240	220	176	136	88
	4SS3/45	4	5.5			315	315	311	293	270	240	198	153	99
	4SS3/50	4	5.5			350	350	345	325	300	270	220	170	110
	4SS3/55	5.5	7.5			385	385	379.5	357.5	330	300	242	187	121
	4SS3/60	5.5	7.5			420	420	414	390	360	320	264	204	132

PERFORMANCE DATA 50Hz
MODEL		P2				DELIVERY n≈2850 1/min
1～	3~	kW	HP	Q	m3/h	0	0.6	1.2	1.8	2.4	3	3.6	4.2	4.8	5.4	6
220V~240V	380V~415V			Q	l/min	0	10	20	30	40	50	60	70	80	90	100
4SSM4/6	4SS4/6	0.37	0.5	H(m)		45	42	41	40	39	36	33	30	24	19	14
4SSM4/7	4SS4/7	0.55	0.75			53	49	48	46	46	42	39	35	28	22	17
4SSM4/8	4SS4/8	0.75	1			60	56	54	53	52	48	44	40	32	26	19
4SSM4/10	4SS4/10	0.92	1.25			75	70	68	66	65	60	55	50	40	32	24
4SSM4/12	4SS4/12	1.1	1.5			90	84	82	79	78	72	66	60	48	38	29
4SSM4/14	4SS4/14	1.3	1.75			105	98	95	92	91	84	77	70	56	45	34
4SSM4/16	4SS4/16	1.5	2			120	112	109	106	104	96	88	80	64	51	38
4SSM4/18	4SS4/18	1.8	2.5			135	126	122	119	117	108	99	90	72	58	43
4SSM4/21	4SS4/21	2.2	3			157.5	147	143	139	137	126	116	105	84	67	50
4SSM4/24	4SS4/24	2.2	3			180	168	163	158	156	144	132	120	96	77	58
	4SS4/28	3	4			210	196	190	185	182	168	154	140	112	90	67
	4SS4/32	3	4			240	224	218	211	208	192	176	160	128	102	77
	4SS4/36	4	5.5			270	252	245	238	234	216	198	180	144	115	86
	4SS4/40	4	5.5			300	280	272	264	260	240	220	200	160	128	96
	4SS4/45	5.5	7.5			337.5	315	306	297	293	270	248	225	180	144	108
	4SS4/50	5.5	7.5			375	350	340	330	325	300	275	250	200	160	120
	4SS4/55	7.5	10			412.5	385	374	363	357.5	330	302.5	275	220	176	132
	4SS4/60	7.5	10			450	420	408	396	390	360	330	300	240	192	144

PERFORMANCE DATA 50Hz
MODEL		P2				DELIVERY n≈2850 1/min
1～	3~	kW	HP	Q	m3/h	0	1.2	2.4	3.6	4.8	6	7.2	8.5
220V~240V	380V~415V			Q	l/min	0	20	40	60	80	100	120	140
4SSM6/5	4SS6/5	0.37	0.5	H(m)		35	34	33	31	28	24	20	13
4SSM6/6	4SS6/6	0.55	0.75			42	40	39	37	34	28	24	15
4SSM6/7	4SS6/7	0.75	1			49	47	46	43	39	33	28	18
4SSM6/8	4SS6/8	0.92	1.25			56	54	52	49	45	38	32	20
4SSM6/9	4SS6/9	1.1	1.5			63	60	59	55	50	42	36	23
4SSM6/11	4SS6/11	1.3	1.75			77	74	72	67	62	52	44	28
4SSM6/12	4SS6/12	1.5	2			84	80	78	73	67	56	48	30
4SSM6/14	4SS6/14	1.8	2.5			98	94	91	85	78	66	56	35
4SSM6/17	4SS6/17	2.2	3			119	114	111	104	95	80	68	43
4SSM6/20	4SS6/20	2.2	3			140	134	130	122	112	94	80	50
	4SS6/23	3	4			161	154	150	140	129	108	92	58
	4SS6/26	3	4			182	174	169	159	146	122	104	65
	4SS6/30	4	5.5			210	201	195	183	168	141	120	75
	4SS6/34	4	5.5			238	228	221	207	190	160	136	85
	4SS6/38	5.5	7.5			266	255	247	232	213	179	152	95
	4SS6/42	5.5	7.5			294	281	273	256	235	197	168	105
	4SS6/46	7.5	10			322	308	299	281	258	216	184	115
	4SS6/50	7.5	10			350	335	325	305	280	235	200	125

PERFORMANCE DATA 50Hz
MODEL		P2				DELIVERY n≈2850 1/min
1～	3~	kW	HP	Q	m3/h	0	1.2	2.4	3.6	4.8	6	7.2	8.5	9.6	11
220V~240V	380V~415V			Q	l/min	0	20	40	60	80	100	120	140	160	180

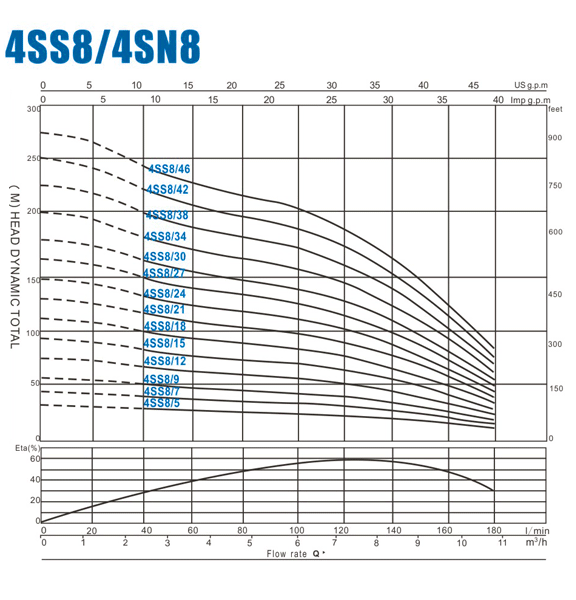

4SSM8/5	4SS8/5	0.55	0.75	H(m)		31	31	28	26	25	24	22	18	14	9
4SSM8/6	4SS8/6	0.75	1			37	37	34	31	30	29	26	21	17	10.8
4SSM8/7	4SS8/7	0.92	1.25			43	43	39	36	35	34	31	25	20	12.6
4SSM8/8	4SS8/8	1.1	1.5			50	50	45	42	40	38	35	28	22	14.4
4SSM8/9	4SS8/9	1.3	1.75			56	56	50	47	45	43	40	32	25	16.2
4SSM8/10	4SS8/10	1.5	2			62	62	56	52	50	48	44	35	28	18
4SSM8/12	4SS8/12	1.8	2.5			74	74	67	62	60	58	53	42	34	21.6
4SSM8/15	4SS8/15	2.2	3			93	93	84	78	75	72	66	53	42	27
4SSM8/18	4SS8/18	2.2	3			111.6	112	101	94	90	86	79	63	50	32.4
	4SS8/21	3	4			130.2	130	118	109	105	101	92	74	59	37.8
	4SS8/24	3	4			148.8	149	134	125	120	115	106	84	67	43.2
	4SS8/27	4	5.5			167.4	167	151	140	135	130	119	95	76	48.6
	4SS8/30	4	5.5			186	186	168	156	150	144	132	105	84	54
	4SS8/34	5.5	7.5			210.8	211	190	177	170	163	150	119	95	61.2
	4SS8/38	5.5	7.5			235.6	236	213	198	190	182	167	133	106	68.4
	4SS8/42	7.5	10			260.4	260	235	218	210	202	185	147	118	75.6
	4SS8/46	7.5	10			285.2	285	258	239	230	221	202	161	129	82.8

PERFORMANCE DATA 50Hz
MODEL		P2				DELIVERY n≈2850 1/min
1～	3~	kW	HP	Q	m3/h	0	1.8	3.6	5.4	7.2	9	10.8	12.6	14.4
220V~240V	380V~415V			Q	l/min	0	30	60	90	120	150	180	210	240
4SSM10/4	4SS10/4	0.75	1	H(m)		24	24	23	21	20	18	15	10	6
4SSM10/5	4SS10/5	0.92	1.25			30	30	29	27	25	23	19	13	8
4SSM10/6	4SS10/6	1.1	1.5			36	36	35	32	30	27	23	16	9
4SSM10/7	4SS10/7	1.3	1.75			42	42	41	37	35	32	27	18	11
4SSM10/8	4SS10/8	1.5	2			48	48	46	42	40	36	30	21	12
4SSM10/10	4SS10/10	1.8	2.5			60	60	58	53	50	45	38	26	15
4SSM10/12	4SS10/12	2.2	3			72	72	70	64	60	54	46	31	18
4SSM10/14	4SS10/14	2.2	3			84	84	81	74	70	63	53	36	21
	4SS10/16	3	4			96	96	93	85	80	72	61	42	24
	4SS10/18	3	4			108	108	104	95	90	81	68	47	27
	4SS10/20	4	5.5			120	120	116	106	100	90	76	52	30
	4SS10/22	4	5.5			132	132	128	117	110	99	84	57	33
	4SS10/25	5.5	7.5			150	150	145	133	125	113	95	65	38
	4SS10/28	5.5	7.5			168	168	162	148	140	126	106	73	42

PERFORMANCE DATA 50Hz
MODEL		P2				DELIVERY n≈2850 1/min
1～	3~	kW	HP	Q	m3/h	0	1.8	3.6	5.4	7.2	9	10.8	12.6	14.4	16
220V~240V	380V~415V			Q	l/min	0	30	60	90	120	150	180	210	240	270

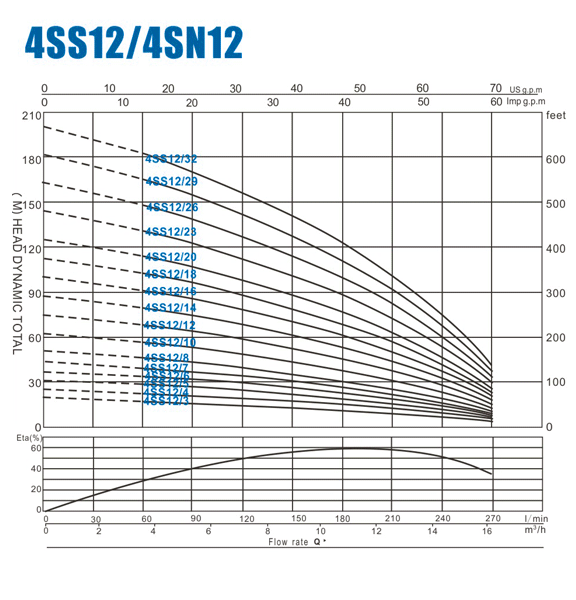

4SSM12/3	4SS12/3	0.75	1	H(m)		19	18	17	16	15	13	12	9	7	4.5
4SSM12/4	4SS12/4	0.92	1.25			25	24	22	21	20	17	16	12	9	6
4SSM12/5	4SS12/5	1.1	1.5			32	30	28	27	25	22	20	15	12	7.5
4SSM12/6	4SS12/6	1.3	1.75			38	36	33	32	30	26	24	18	14	9
4SSM12/7	4SS12/7	1.5	2			44	42	39	37	35	30	28	21	16	10.5
4SSM12/8	4SS12/8	1.8	2.5			50	48	44	42	40	34	32	24	18	12
4SSM12/10	4SS12/10	2.2	3			63	60	55	53	50	43	40	30	23	15
4SSM12/12	4SS12/12	2.2	3			76	72	66	64	60	52	48	36	28	18
	4SS12/14	3	4			88.2	84	77	74	70	60	56	42	32	21
	4SS12/16	3	4			100.8	96	88	85	80	69	64	48	37	24
	4SS12/18	4	5.5			113.4	108	99	95	90	77	72	54	41	27
	4SS12/20	4	5.5			126	120	110	106	100	86	80	60	46	30
	4SS12/23	5.5	7.5			144.9	138	127	122	115	99	92	69	53	34.5
	4SS12/26	5.5	7.5			163.8	156	143	138	130	112	104	78	60	39
	4SS12/29	7.5	10			182.7	174	160	154	145	125	116	87	67	43.5
	4SS12/32	7.5	10			201.6	192	176	170	160	138	128	96	74	48

PERFORMANCE DATA 50Hz
MODEL		P2				DELIVERY n≈2850 1/min
1～	3~	kW	HP	Q	m3/h	0	3	6	9	12	15	18	21
220V~240V	380V~415V			Q	l/min	0	50	100	150	200	250	300	350

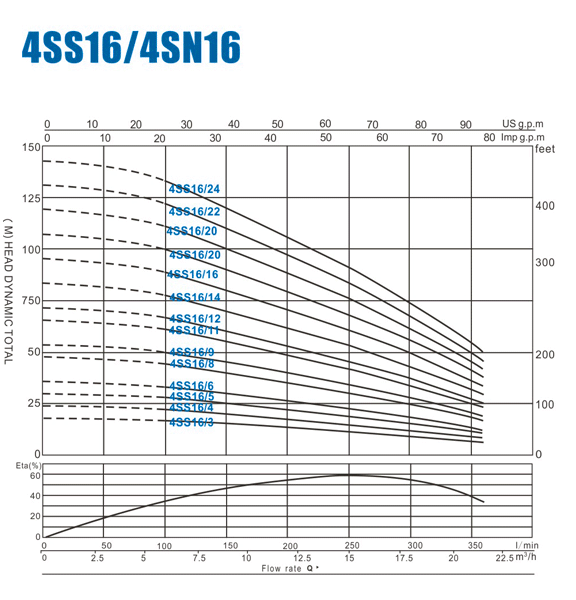

4SSM16/3	4SS16/3	1.1	1.5	H(m)		18	17	17	15	13	11	9	6
4SSM16/4	4SS16/4	1.3	1.75			24	23	22	20	17	12	12	8
4SSM16/5	4SS16/5	1.5	2			30	29	28	25	22	13	15	10
4SSM16/6	4SS16/6	1.8	2.5			36	35	33	30	26	14	18	12
4SSM16/8	4SS16/8	2.2	3			48	46	44	40	35	15	24	16
4SSM16/9	4SS16/9	2.2	3			54	52	50	45	39	16	27	18
	4SS16/11	3	4			66	64	61	55	48	17	33	22
	4SS16/12	3	4			72	70	66	60	52	18	36	24
	4SS16/14	4	5.5			84	81	77	70	61	19	42	28
	4SS16/16	4	5.5			96	93	88	80	70	20	48	32
	4SS16/18	5.5	7.5			108	104	99	90	78	21	54	36
	4SS16/20	5.5	7.5			120	116	110	100	87	22	60	40
	4SS16/22	7.5	10			132	128	121	110	96	23	66	44
	4SS16/24	7.5	10			144	139	132	120	104	24	72	48
