4SP

Applications
For water supply from wells or reservois
For domestic use,for civil and industrial
applications For garden use and irrigation

Operating Conditions
Maximum fluid temperature up to+50 ℃
Maximum sand content:0.25%
Maximum immersion:80m
Maximum well diameter:4"

Motor and pump
Singe phaseL220C~240v/50HZ
Three phase:380V~415v/50HZ
Equip with star control box digital auto-control box

Options on Request
Special mechanical seal
Other voitage or frequency 60HZ
Single phase motor with built-in capacitor

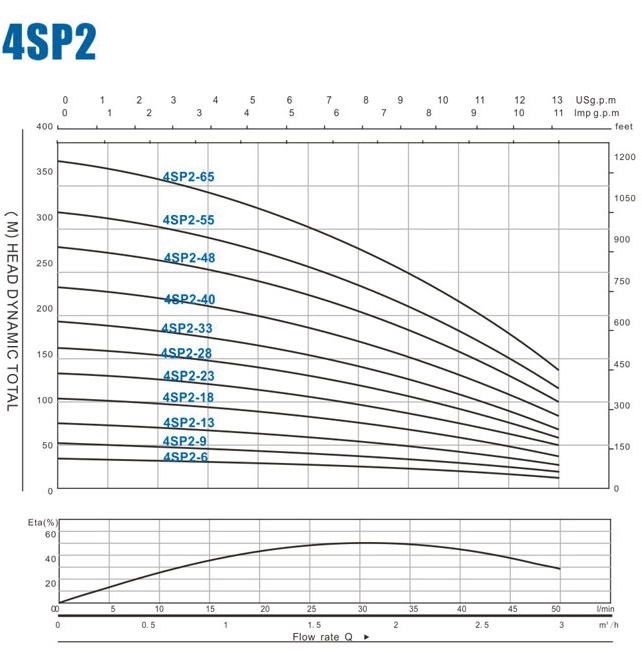

PERFORMANCE DATA 50Hz
MODEL		P2				DELIVERY n≈2850 1/min
1～	3~	kW	HP	Q	m3/h	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7	3
220 - 240V	380 - 415V			Q	l/min	0	5	10	15	20	25	30	35	40	45	50
4SPM2-6	4SP2-6	0.37	0.5	H(m)		35	34	33	32	30	28	26	23	20	17	13
4SPM2-9	4SP2-9	0.37	0.5			52	51	50	48	45	42	38	34	30	25	19
4SPM2-13	4SP2-13	0.55	0.75			76	74	72	69	65	61	55	50	43	36	27
4SPM2-18	4SP2-18	0.75	1			105	103	100	95	90	84	77	69	60	50	38
4SPM2-23	4SP2-23	1.1	1.5			134	131	127	122	115	107	98	88	77	64	48
4SPM2-28	4SP2-28	1.5	2			163	160	155	148	140	131	119	107	93	78	59
4SPM2-33	4SP2-33	1.5	2			192	188	183	175	166	154	141	126	110	91	70
4SPM2-40	4SP2-40	2.2	3			233	228	222	212	201	186	170	153	134	111	84
4SPM2-48	4SP2-48	2.2	3			280	274	266	254	241	224	205	183	160	133	101
	4SP2-55	3	4			321	314	305	291	276	256	234	210	184	152	116
	4SP2-65	3	4			379	371	360	344	326	303	277	248	217	180	137

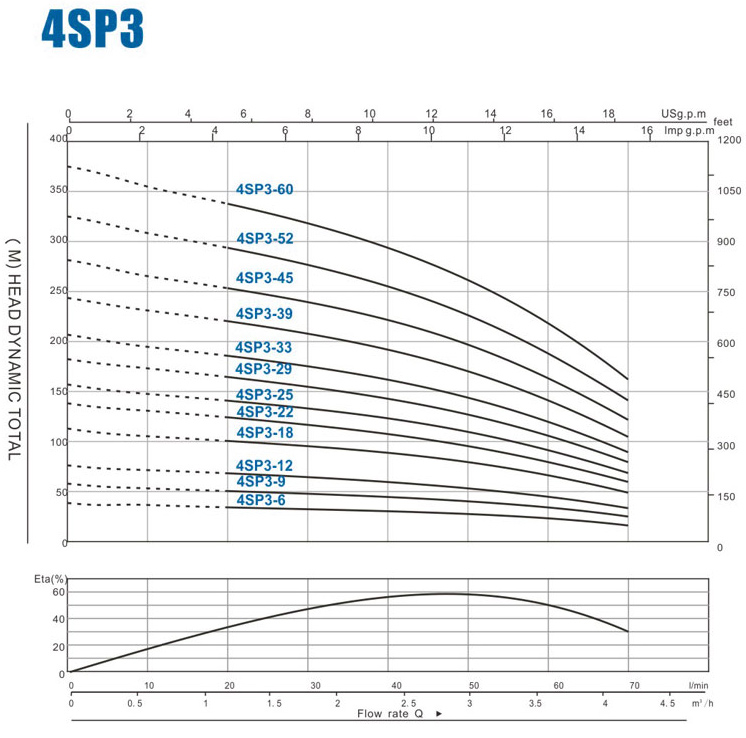

PERFORMANCE DATA 50Hz
MODEL		P2				DELIVERY n≈2850 1/min
1～	3~	kW	HP	Q	m3/h	0	0.6	1.2	1.8	2.4	3	3 .6	4.2
220 - 240V	380 - 415V			Q	l/min	0	10	20	30	40	50	60	70
4SPM3-6	4SP3-6	0.37	0.5	H(m)		37	35	34	32	44	26	22	16
4SPM3-9	4SP3-9	0.55	0.75			56	53	50	48	29	39	32	24
4SPM3-12	4SP3-12	0.75	1			75	71	67	63	59	52	43	32
4SPM3-18	4SP3-18	1.1	1.5			112	106	101	95	88	78	65	48
4SPM3-22	4SP3-22	1.5	2			137	130	123	116	108	95	79	59
4SPM3-25	4SP3-25	1.5	2			155	148	140	132	123	108	90	67
4SPM3-29	4SP3-29	2.2	3			180	171	162	153	142	126	104	77
4SPM3-33	4SP3-33	2.2	3			205	195	185	174	162	143	119	88
	4SP3-39	3	4			242	230	218	206	191	169	140	104
	4SP3-45	3	4			280	266	252	238	221	195	162	120
	4SP3-52	4	5.5			323	307	291	275	255	225	187	139
	4SP3-60	4	5.5			373	354	336	317	294	260	216	160

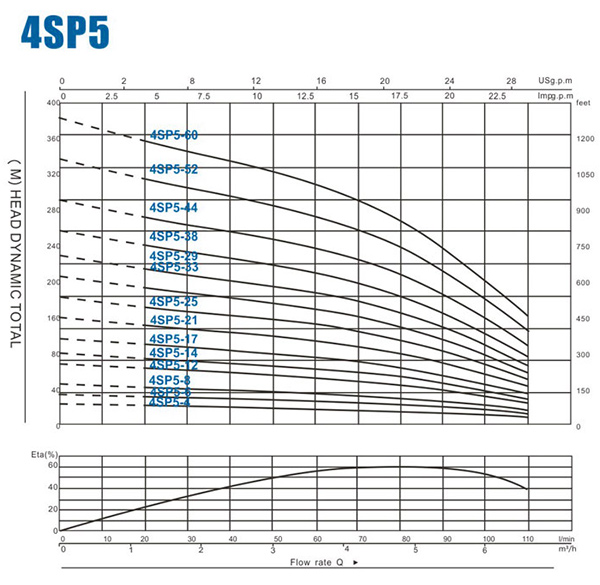

PERFORMANCE DATA 50Hz
MODEL		P2				DELIVERY n≈2850 1/min
1～	3~	kW	HP	Q	m3/h	0	0.6	1.2	1.8	2.4	3	3.6	4.2	4.8	5.4	6	6.6
220 - 240V	380 - 415V			Q	l/min	0	10	20	30	40	50	50	70	80	90	100	110
4SPM5-4	4SP5-4	0.37	0.5	H(m)		25	25	24	23	22	21	20	19	17	15	12	9
4SPM5-6	4SP5-6	0.55	0.75			38	37	35	34	33	31	30	28	25	22	18	13
4SPM5-8	4SP5-8	0.75	1			51	49	47	45	44	42	40	37	34	29	24	18
4SPM5-12	4SP5-12	1.1	1.5			76	74	71	68	66	63	60	56	51	44	36	27
4SPM5-14	4SP5-14	1.5	2			89	86	82	79	77	73	70	65	59	51	42	31
4SPM5-17	4SP5-17	1.5	2			108	104	100	96	93	89	85	79	72	62	51	38
4SPM5-21	4SP5-21	2.2	3			134	129	124	119	115	110	105	98	89	77	63	47
4SPM5-25	4SP5-25	2.2	3			159	153	147	142	137	131	125	117	106	92	75	56
	4SP5-29	3	4			185	178	171	164	159	152	145	135	123	106	87	65
	4SP5-33	3	4			210	202	194	187	180	173	165	154	140	121	99	74
	4SP5-38	4	5.5			242	233	224	215	208	200	190	177	162	139	114	86
	4SP5-44	4	5.5			280	270	259	249	241	231	220	205	187	161	132	99
	4SP5-52	5.5	7.5			331	319	306	295	284	273	260	243	221	191	156	117
	4SP5-60	5.5	7.5			382	368	353	340	328	315	300	280	255	220	180	135

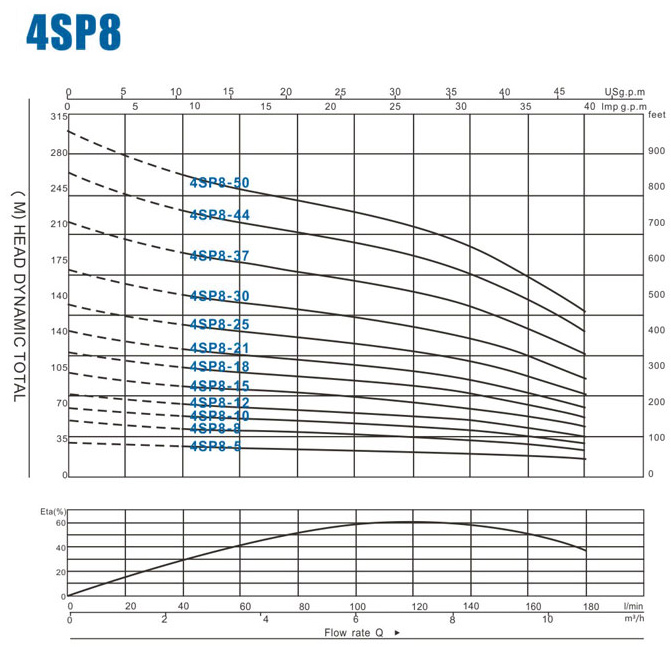

PERFORMANCE DATA 50Hz
MODEL		P2				DELIVERY n≈2850 1/min
1～	3~	kW	HP	Q	m3/h	0	0.6	1.2	2.4	3.6	4.8	6	8.4	9.6	10.8
220 - 240V	380 - 415V			Q	l/min	0	10	20	40	60	80	100	140	160	180
4SPM8-5	4SP8-5	0.75	1	H(m)		30	28	26	25	24	23	22	20	17	14
4SPM8-7	4SP8-7	1.1	1.5			42	39	37	35	34	32	31	28	24	20
4SPM8-8	4SP8-8	1.5	2			48	45	42	40	38	37	35	32	28	23
4SPM8-10	4SP8-10	1.5	2			60	56	53	50	48	46	44	40	35	29
4SPM8-12	4SP8-12	2.2	3			72	67	63	60	58	55	53	48	42	34
4SPM8-15	4SP8-15	2.2	3			90	84	79	75	72	69	66	60	52	43
	4SP8-18	3	4			108	100	95	90	86	83	79	72	63	51
	4SP8-21	4	5.5			126	117	110	105	101	97	92	84	73	60
	4SP8-25	4	5.5			150	140	132	126	120	115	109	100	87	71
	4SP8-30	5.5	7.5			180	167	158	151	144	138	131	120	104	86
	4SP8-37	5.5	7.5			222	206	195	186	178	170	162	148	129	106
	4SP8-44	7.5	10			264	246	231	221	211	202	193	176	153	126
	4SP8-50	7.5	10			300	279	263	251	240	230	219	200	174	143

PERFORMANCE DATA 50Hz
MODEL		P2				DELIVERY n≈2850 1/min
1～	3~	kW	HP	Q	m3/h	0	1.8	3.6	5.4	7.2	9	10.8	12.6	14.4	16.2	18
220 - 240V	380 - 415V			Q	l/min	0	30	60	90	120	150	180	210	240	270	300
4SPM14-5	4SP14-5	1.5	2	H(m)		33	34	33	32	31	29	28	26	23	19	15
4SPM14-7	4SP14-7	2.2	3			46	48	46	45	43	41	39	36	32	27	20
	4SP14-10	3	4			66	68	66	64	62	58	55	51	45	38	29
	4SP14-13	4	5.5			85	88	86	83	80	76	72	67	59	49	38
	4SP14-18	5.5	7.5			118	122	120	115	111	105	99	92	81	68	53
	4SP14-25	7.5	10			164	170	166	160	154	146	138	128	113	95	73
