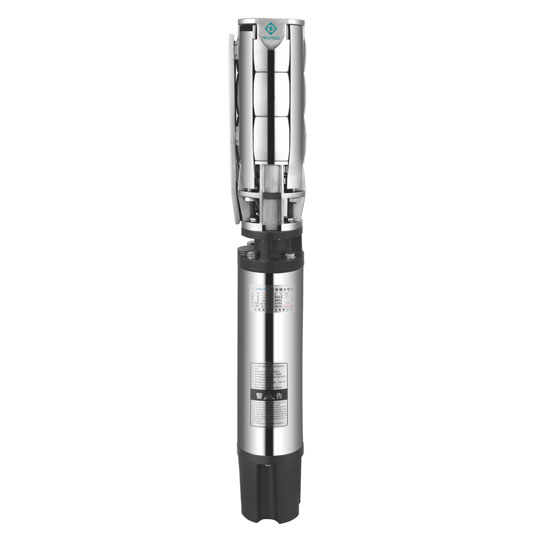

8SP

Applications
For water uply from wells or reservoirs
For domestic use,for covil and industrial applictions
For garden use and irrigation

Operating Conditions
Maximum uid temoerature up to +50℃
Maximun sand content:0.25%
Maximum immersion:100m
Minimum well diameter:8"

Motor and Pump

Rewindable motor or Hermetically-Sealed motor

Three-phase: 380V- 415V/50Hz

① Direct start (1 cable)

② Star-delta start (2 cables)

Equip with start control box or digital auto-control box

NEMA dimension standards

Options on Request
Special mechanical seal
Other voltages or frequency 60HZ
Warranty:1year
(according to our general sales conditions)

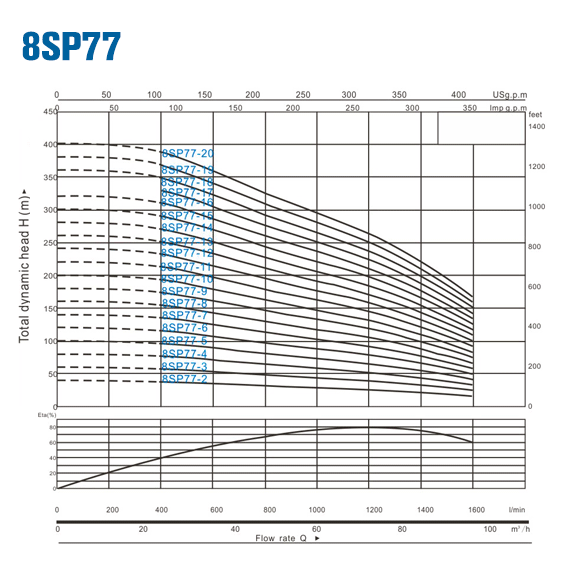

PERFORMANCE DATA 50Hz
MODEL	P2				DELIVERY n≈2850 1/min
3~ 380-415V	kW	HP	Q	m3/h	0	12	24	36	48	60	72	84	96
3~ 380-415V	kW	HP	Q	l/min	0	200	400	600	800	1000	1200	1400	1600
8SP77-2	7.5	10	H(m)		41	41	40	37	34	31	28	23	17
8SP77-3	11	15			61	61	59	55	50	46	41	34	26
8SP77-4	15	20			81	81	78	73	66	61	54	45	34
8SP77-5	18.5	25			102	101	98	91	83	76	68	56	43
8SP77-6	22	30			122	121	118	109	100	91	82	67	52
8SP77-7	26	35			142	141	137	127	116	106	95	78	60
8SP77-8	30	40			162	161	157	146	133	122	109	90	69
8SP77-9	30	40			182	181	176	164	149	136	122	101	77
8SP77-10	37	50			202	201	196	182	166	150	136	112	86
8SP77-11	37	50			222	221	216	200	183	164	149	123	95
8SP77-12	45	60			241	240	235	218	199	180	162	134	103
8SP77-13	55	75			263	263	255	237	213	195	176	146	112
8SP77-14	55	75			283	283	274	255	230	210	190	157	120
8SP77-15	55	75			304	303	294	273	248	225	203	168	128
8SP77-16	63	85			324	323	314	291	263	240	216	179	136
8SP77-17	63	85			344	343	333	309	280	254	229	190	145
8SP77-18	63	85			365	364	353	328	295	268	242	202	153
8SP77-19	75	100			385	384	372	346	312	283	256	213	162
8SP77-20	75	100			405	403	392	364	330	298	269	224	170

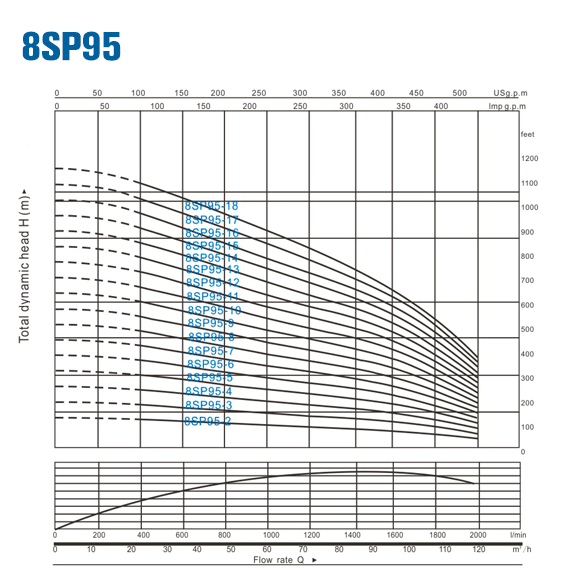

PERFORMANCE DATA 50Hz
MODEL	P2				DELIVERY n≈2850 1/min
3~ 380-415V	kW	HP	Q	m3/h	0	12	24	36	48	60	72	84	96	108	120
3~ 380-415V	kW	HP	Q	l/min	0	200	400	600	800	1000	1200	1400	1600	1800	2000
8SP95-2	9.2	12.5	H(m)		42	41	40	38	35	33	31	29	26	21	15
8SP95-3	13	17.5			63	62	61	58	53	48	46	42	38	31	22
8SP95-4	18.5	25			84	83	81	77	70	64	61	56	50	41	29
8SP95-5	22	30			106	104	101	96	88	81	76	71	62	51	36
8SP95-6	26	35			127	125	121	115	106	97	91	85	75	61	43
8SP95-7	30	40			148	146	141	134	123	113	106	99	87	71	50
8SP95-8	37	50			169	166	162	154	141	129	122	113	99	81	57
8SP95-9	37	50			190	187	182	173	158	145	137	127	111	91	64
8SP95-10	45	60			211	208	202	191	176	161	152	140	124	101	71
8SP95-11	55	75			232	229	222	210	194	177	167	154	136	111	78
8SP95-12	55	75			253	250	242	229	211	193	182	168	149	121	85
8SP95-13	55	75			274	270	263	248	229	209	196	182	162	131	92
8SP95-14	63	85			295	291	283	267	246	225	211	197	174	141	99
8SP95-15	75	100			317	312	303	285	264	242	226	211	186	150	107
8SP95-16	75	100			338	333	323	304	282	258	241	224	199	160	114
8SP95-17	75	100			359	354	343	323	299	274	257	238	212	170	121
8SP95-18	92	125			380	376	364	342	317	290	272	252	224	180	128
