90QJ

Applications
1.Small size full lift range,full voltage,suitable for household and commercial use;
2.Submersible motor that can dive to the depthor 100mmeters;easily replaced plug-in cable;
3.Pump use enviroment.roon temperature,clear water：
4.Motor auto,atic protection.
5.Single-phase 180V-230V/50Hz
6.Easy to use built-in cupaliton

Operating Conditions

Motor and Pump

Options on Request

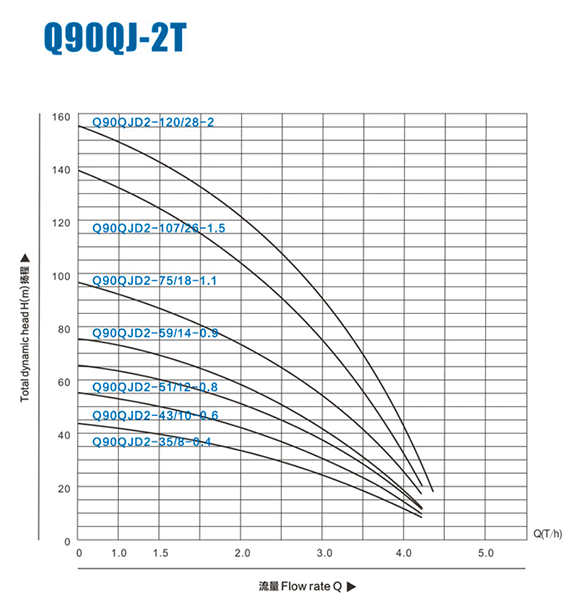

PERFORMANCE DATA 50Hz
MODEL		P2				DELIVERY n≈2850 1/min
1～	3~	kW	HP	Q	m3/h	0	0.3	0.6	0.9	1.2
220V~240V	380V~415V			Q	l/min	0	5	10	15	20
90QJD2/8	90QJ2/8	0.25	0.33	H(m)		45	44	43	42	40
90QJD2/11	90QJ2/11	0.37	0.5			62	61	59	58	55
90QJD2/14	90QJ2/14	0.55	0.75			78	77	76	74	70
90QJD2/17	90QJ2/17	0.75	1			95	94	92	90	85
90QJD2/21	90QJ2/21	1.1	1.5			118	116	113	111	105
90QJD2/25	90QJ2/25	1.3	1.75			140	138	135	133	125
90QJD2/29	90QJ2/29	1.5	2			162	160	157	154	145
90QJD2/33	90QJ2/33	1.8	2.5			185	182	178	175	165

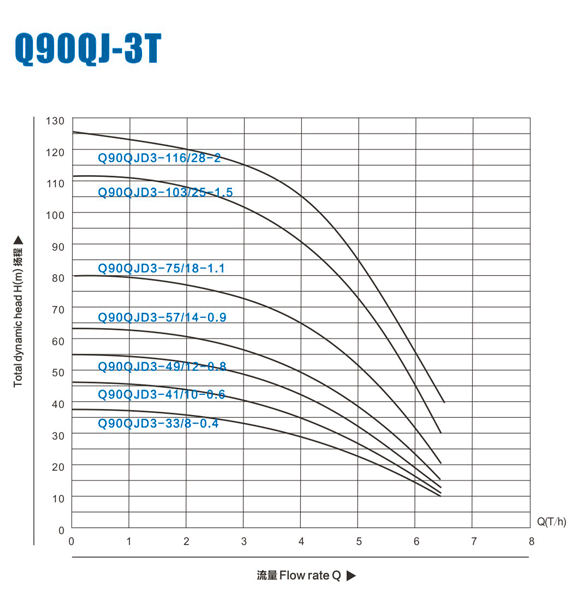

PERFORMANCE DATA 50Hz
MODEL		P2				DELIVERY n≈2850 1/min
1～	3~	kW	HP	Q	m3/h	0	0.6	1.2	1.8	2.4	3	3.6	4.2	4.8
220V~240V	380V~415V			Q	l/min	0	10	20	30	40	50	60	70	80
90QJD3/6	90QJ3/6	0.25	0.33	H(m)		34	33	32	32	30	29	22	15	9
90QJD3/8	90QJ3/8	0.37	0.5			45	44	43	42	40	38	30	20	12
90QJD3/11	90QJ3/11	0.55	0.75			62	61	59	58	55	53	41	28	17
90QJD3/14	90QJ3/14	0.75	1			78	77	76	74	70	67	52	35	21
90QJD3/17	90QJ3/17	1.1	1.5			95	94	92	90	85	82	63	43	26
90QJD3/20	90QJ3/20	1.3	1.75			112	110	108	106	100	96	74	50	30
90QJD3/23	90QJ3/23	1.5	2			129	127	124	122	115	110	85	58	35
90QJD3/26	90QJ3/26	1.8	2.5			146	144	142	138	128	125	96	66	37

PERFORMANCE DATA 50Hz
MODEL		P2				DELIVERY n≈2850 1/min
1～	3~	kW	HP	Q	m3/h	0	0.6	1.2	1.8	2.4	3	3.6	4.2	4.8	5.5	6
220V~240V	380V~415V			Q	l/min	0	10	20	30	40	50	60	70	80	90	100
90QJD4/5	90QJ4/5	0.25	0.33	H(m)		29	28	27	26	25	25	23	19	15	12.5	6
90QJD4/7	90QJ4/7	0.37	0.5			41	39	38	36	35	34	32	27	21	17.5	8
90QJD4/9	90QJ4/9	0.55	0.75			52	50	49	47	45	44	41	34	27	22.5	11
90QJD4/11	90QJ4/11	0.75	1			64	61	59	57	55	54	50	42	33	27.5	13
90QJD4/13	90QJ4/13	1.1	1.5			75	72	70	68	65	64	59	49	39	32.5	16
90QJD4/16	90QJ4/16	1.3	1.75			93	88	86	83	80	78	72	61	48	40	19
90QJD4/18	90QJ4/18	1.5	2			104	99	97	94	90	88	81	68	54	45	22
90QJD4/21	90QJ4/21	1.8	2.5			122	116	113	109	105	103	95	79.8	63	52.5	25
